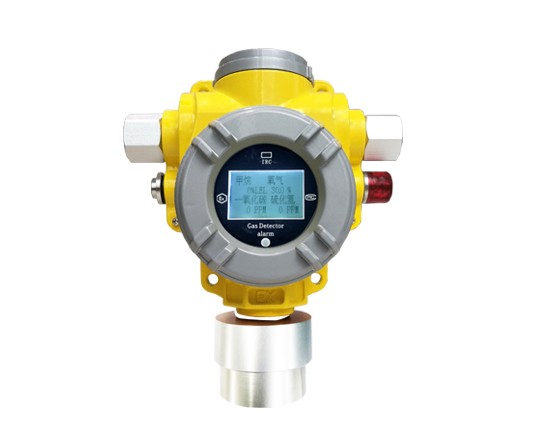

point type 4 in1 one Gas Detector-TCB2
point type 4 in1 one Gas Detector-TCB2

point type 4 in1 one Gas Detector-TCB2

    • Sound and light integrated alarm
    • Wireless remote control technology
    • Natural diffusion detection
    • Chinese LCD
    • Two groups of switching signals

product description

TCB2 fixed Gas Detector is a multifunctional intelligent gas detection instrument(Different gases can be combined four in one or five in one.)the instrument adopts high performance detection devices and micro computer control technology, and combined with automatic mount of advanced manufacturing technology, the products of both the scene buzzing indicating sound field flashing lights and other functions, and the real-time display of monitoring gas concentration field.

TCB2 multi-functional gas detector can be in the air gas concentration signal into the electrical signal display and remote transmission, using three wire 4 to 20mA or four RS485 bus output, with long transmission distance and anti-jamming etc..

TCB2 fixed Gas Detector can be used in chemical plant, smelting papermaking, gas refrigeration fire,  wastewater treatment, gas ,food, rubber, pharmaceutical scasting , petroleum refining,  mining, municipal fire,communications and other anti explosion, anti poisoning , anti suffocation in the industrial environment



Gas

Measuring range

Optional range

Resolution

Response time

 EX

0-100%LEL

0-100%VOL (infrared)

1%LEL/1%VOL

≤15second

 O2

0-30%VOL

0-30%、0-100%VOL

0.1%/0.01%VOL

≤15second

H2S

0-100PPM

0-50、200、1000PPM

0.1/1PPM

≤15second

CO

0-1000PPM

0-500/2000/5000PPM

0.1/1PPM

≤15second

NO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

Natural gas

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

NOX

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CH4

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

 CO2

0-5000PPM

0-1%、5%、10%VOL (infrared)

1PPM/0.01%VOL

≤20second

NO

0-250PPM

0-500、1000PPM

1PPM

≤20second

N2

0-100%VOL

0-100%VOL

0.1%VOL

≤15second

Alcohol

0-100%LEL

0-100%LEL

1%LEL/1%VOL

≤15second

SO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CL2

0-20PPM

0-10、50、100PPM

0.1PPM

≤20second

dichlorosilane

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

NH3

0-100PPM

0-50、500、1000PPM

0.1/1PPM

≤20second

Silicon tetrachloride

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

H2

0-1000PPM

0-40000PPM

1/10PPM

≤20second

PH3

0-20PPM

0-20、1000PPM

0.1/1PPM

≤20second

 HCL

0-20PPM

0-20、50、100PPM

0.1/1PPM

≤20second

Acrylonitrile

0-100PPM

0-100PPM

1PPM

≤20second

TVOC

0-100PPM

0-100PPM

1PPM

≤20second

CLO2

0-50PPM

0-10、100PPM

0.1PPM

≤20second

HCN

0-50PPM

0-100PPM

0.1PPM

≤20second

 ETO

0-10PPM

0-100、1000PPM

1PPM

≤20second

 O3

0-10PPM

0-20、100PPM

0.01/0.1PPM

≤20second

 CH2O

0-20PPM

0-50、100PPM

0.1/1PPM

≤20second

 F2

0-10PPM

0-1、10PPM

1/0.1PPM

≤20second

 HF

0-10PPM

0-1、10、50、100PPM

0.01/0.1PPM

≤20second

Xylene, toluene

0-20PPM

50、100PPM

0.1/1PPM

≤20second

Stench

0-100PPM

0-100PPM

1PPM

≤20second

For unlisted gas, please contact our sales department



Main function
Henan Zhong An Electronic Detection Technology CO.,LTD.
  • Sound and light integrated alarm
  • Accurate measurement: the sensor adopts imported gas sensitive components, with high accuracy and small zero drift
  • Explosion-proof design: can be used in hazardous areas in zone 1,2 under factory conditions
  • Wireless remote control technology
  • Natural diffusion detection
  • Chinese LCD
  • Two groups of switching signals
  • Double cavity structure, independent plug-in wiring area, convenient, safe and simple



Technical index

Detection principle

catalytic combustion type; electrochemical; infrared

Detection of gas

flammable gas; liquid vapor TVOC; toxic and harmful; oxygen(Any four gases can be combined)

Sampling mode

Natural diffusion

Detection range

(0~100%)LEL;0-****PPM

Resolving

1%LEL;1PPM/0.1PPM

Measurement error

±3%LEL

Status indication

LCD

Debug mode:

controller

Response time

<20s

Recovery time

<30s

Working temperature

-20℃~50℃(indoor);-40℃~70℃(outdoor) Relative humidity :<95%;

Explosion-proof

Ex d  ib ⅡC T6 Gb

Protection Grade

IP67

Power

DC24V±10%

Output signal

4~20mA or RS485

Install the screw thread

G1/2

Cable dimension

≥1.5mm2×3;≥1.5mm2×4

Transmit distance

≤1500m

Weight

≤2000g
