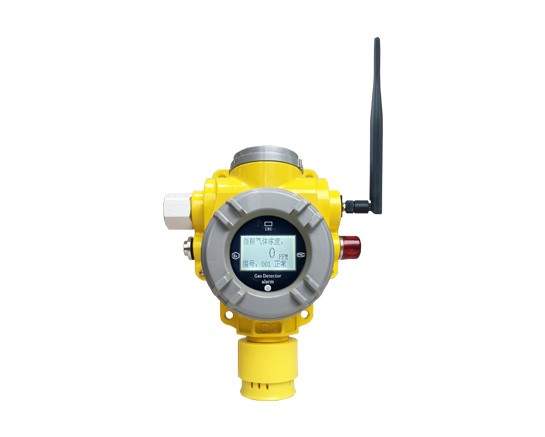

TCB2 Modular wireless gas detector
TCB2 Modular wireless gas detector

TCB2 Modular wireless gas detector

    • total weight:≤2000g
    • IP Grade:IP66
    • explosive-proof grade:Ex d ⅡC T6 Gb
    • Output signal:wireless signal
    • Electrical source:DC24V or AC220V
product description

TCB2 is an intelligent multifunctional instrument for gas detection. The instrument adopts high-performance detection components and computer microcontrol technology,combined with advanced automatic mounting technology, the product has the functions of on-site buzzer indicating tone, on-site flashing indicator light, and real-time display and monitoring of on-site gas concentration.

TCB2 multi-function point-type gas detector can transform the gas concentration signal in the air into electrical signal display and remote transmission, using four-bus RS3082 output mode, with long transmission distance, good anti-interference and other characteristics.

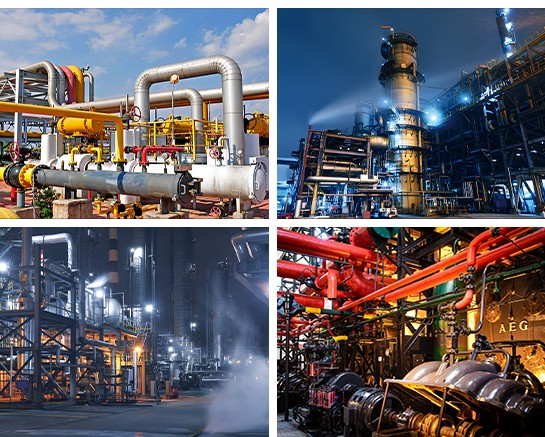

TCB2-point gas detector can be used in chemical factory, smelting and paper-making, refrigeration and fire fighting, gas catering, rubber, sewage treatment, pharmaceutical casting, petroleum refining and chemical, mining and electric power, fire administration, communication and other industrial environments that need to be explosion proof, poisoning proof and asphyxiation proof.



Technical index

Detect method

Catalytic combustion; Electrochemical formula; infrared

Detect gas

LEL、VOC、harmful gases、oxygen

Sampling method

Diffusion

Range

(0~100%)LEL;0-****PPM

Resolution

1%LEL;1PPM/0.1PPM

 Measuring error

full range ±3%FS

Status indicator

LCD or LED (Optional no display)

Debug mode

Remote control

Response time

<20s

 Recovery time

<30s

Environment temperature

-20℃~50℃

Relative humidity

<95%

Electrical source

DC24V or AC220V

Output signal

wireless signal

Wired way

G1/2

Maximum distance between detector and host

≤3000m

total weight

≤2000g

explosive-proof grade

Ex d ⅡC T6 Gb

IP Grade

IP66
