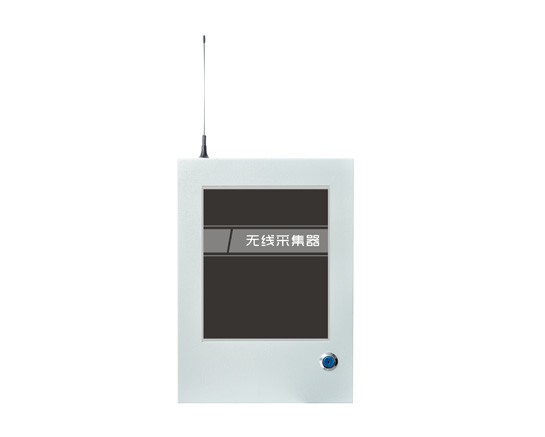

Wireless Collector (Non-explosion-proof Type)
Wireless Collector (Non-explosion-proof Type)

Wireless Collector (Non-explosion-proof Type)

    • Provide multiple channels for customers to use
    • Working frequency band 433MHz, free to use, reducing cost
    • Long communication distance, strong anti-interference ability, and stable data transmission
    • Receiving sensitivity up to -130dBm
Product description

This collector is based on a wireless data transmission station, which collects data from multiple detectors through a hub for point-to-point (same technical parameters) transmission, with high stability and low power. It has RS485 interface, long communication distance, strong anti-interference ability and stable data transmission.



Features

◆ Fixed-point transmission, transparent transmission, with a maximum transmission distance of up to 8000 meters [Test in an open area without obstacles]

◆ Provide multiple channels for customers to use

◆ Working frequency band 433MHz, free to use, reducing cost

◆ Save the cumbersome wiring from the factory workshop to the monitoring room, reduce the difficulty of construction, and reduce construction costs

◆ Long communication distance, strong anti-interference ability, and stable data transmission.

◆ Receiving sensitivity up to -130dBm

◆ Built-in multiple exception handling mechanisms to ensure long-term stable operation of the module

◆ Built-in power management module to ensure the stable power supply of the radio station, which can meet a variety of system requirements


Technical index

Wireless Collector (Non-explosion-proof Type)

Input working voltage

AC220V

Hub operating voltage

DC24V

Operating voltage of digital radio module

8.0V~28VDC

Connect the detector output power

DC24V8A(190W)

Wireless transmit power

Maximum transmit power about 30dBm(about 1W)

Wireless transmission distance

8000 meters

Working environment

Air temperature: -10~+60℃

Relative humidity: 25%~90%

Static pressure: 65kPa~106kPa

There is no strong mechanical vibration, shock, strong electromagnetic field and corrosive gas around
