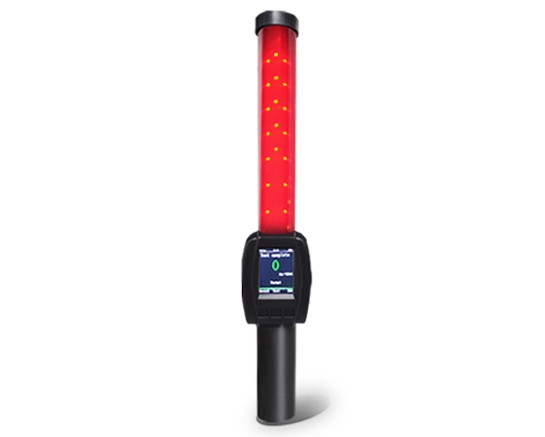

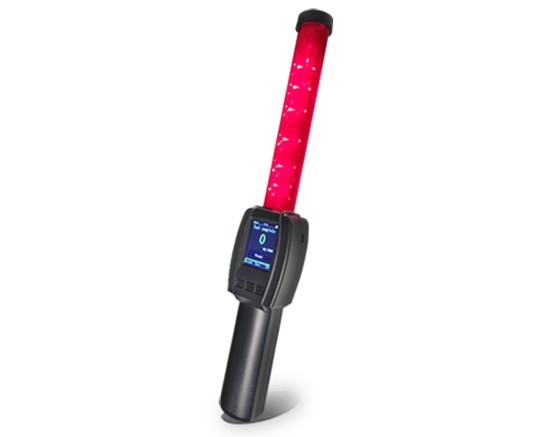

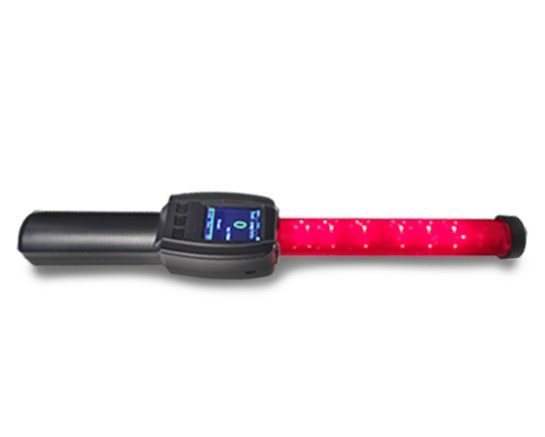

ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector
ZM-2100 rapid inspection alcohol detector

ZM-2100 rapid inspection alcohol detector

    • Stick design, beautiful image, no need to blow mouth
    • LCD color liquid crystal display, beautiful and clear
    • Provide real-time time display function
    • Under voltage, no operation automatic shutdown
    • Fast analysis technology, results in one second
    • Matrix alarm lamp design, the result is clear

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]



product description

ZM-2100 new model handheld alcohol detector is designed for Personal&Police Application, it can quick Response&Resume,ODM&OEM are avalizble!

The core component of this instrument adopts high-tech electrochemical alcohol sensor, which can quickly check the alcohol content in the exhaled gas, and has strong anti-interference ability; the simplified keyboard, menu operation and very good human-computer interaction interface possessed by OT-2000 make the operation More concise and convenient; the color LCD screen display makes the interface more beautiful and clear; the high-brightness alarm light indication is more convenient to use; the non-contact air inlet design ensures the health and safety of the testee.

Main function
Henan Zhong An Electronic Detection Technology CO.,LTD.
  • Non-contact pump suction type, more environmentally friendly, more hygienic and safer
  • The instrument adopts advanced ultra-low power micro-processing controller
  • The alarm point is adjustable, the test unit can be switched
  • Large amount of test information storage, can store no less than 100 times of storage results, easy to query
  • Continuous and fast automatic detection, no need to press the button to complete the test
  • With flashlight lighting function, suitable for night operation (optional)
  • Two-level audible and visual alarm information, the screen shows the alarm type (voice alarm (optional))



Technical index

Model

ZM-2100

Sensor type

Electrochemical alcohol sensor

Measurement range

0-220mg/100ml 0 1.000mg/L

Preheating time

no preheating required

 Response time

less than 1 second for the results

Sampling method

air pump suction, active continuous suction

Drink-driving threshold

0.090 mg/L(20mg/100ml)

Drunk driving threshold

0.363 mg/L(80mg/100ml)

Storage temperature

-30℃~70℃

Working temperature

-10℃~50℃

Continuous working time

Hundreds to 2,000 times (related to battery capacity)

Battery capacity

 Rechargeable lithium-ion batteries 3.7V2000mA

Size

L×W×H(mm):380×67×45

Weight

about 160g

Calibration period

6 months
