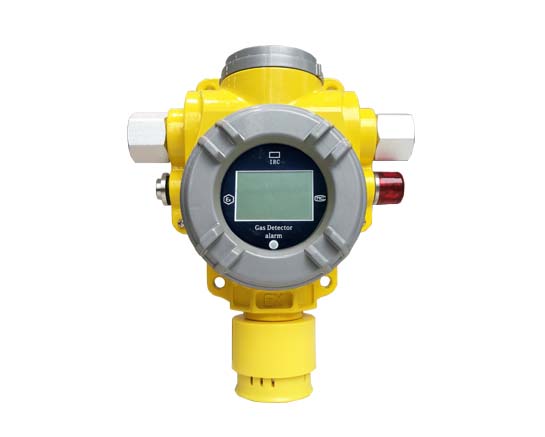

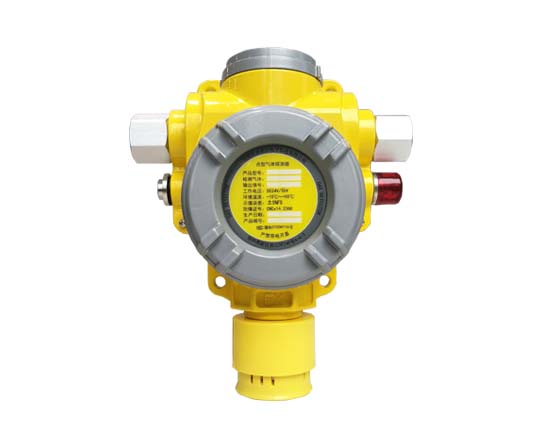

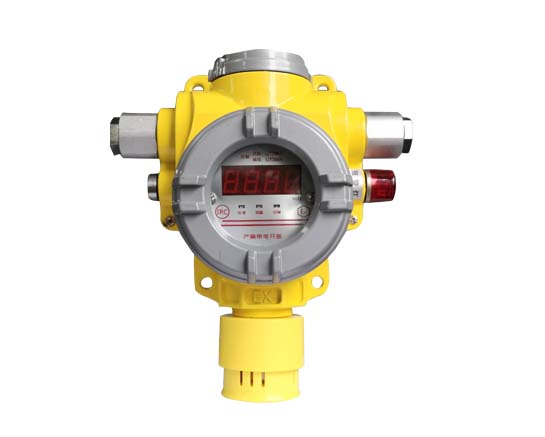

point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2
point type four gas detector-TCB2

point type four gas detector-TCB2

    • Full English LCD display
    • High-performance sensor technology,long life
    • Double cavity structure design
    • Waterproof,dustproof and explosion-proof
    • Anti-corrosion shell,durable

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]



Product description
TCB2 Multi-4 Gas Detector, Detects Carbon Monoxide, Combustible, Hydrogen Sulfide, Oxygen and it is suitable for explosion-proof, toxic gas leakage, underground pipelines or mines and other places, can effectively ensure that the safety of workers' lives are not harmed, production equipment is not damaged. The detector uses a pumping method to detect gas, and the sensitive element uses a high-quality gas sensor, which has excellent sensitivity and excellent repeatability; the instrument uses embedded microcomputer control, simple operation, complete functions, high reliability, and a variety of adaptation Ability to use graphic LCD display, intuitive and clear.

TCB2 point gas detectors can be combined in four or one in five according to different gases. They are manufactured using convenient wireless remote control operation technology, high-performance sensors combined with sophisticated SMD process, and the instrument has good repeatability and temperature resistance Humidity interference, long service life, easy operation and other advantages.

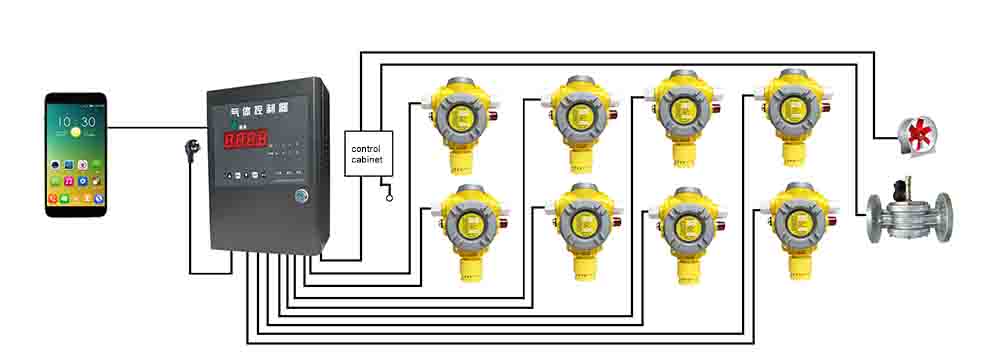

TCB2 point type gas detector adopts two-wire or four-wire system structure, and the monitoring results can be checked away from the scene by monitoring instruments or controllers. It is suitable for online real-time monitoring of toxic gases and flammable and explosive gases in various environments. The all-in-one combination can intuitively detect the concentration of multiple gases through the LCD screen and display them separately.



Gas

Measuring range

Optional range

Resolution

Response time

 EX

0-100%LEL

0-100%VOL (infrared)

1%LEL/1%VOL

≤15second

 O2

0-30%VOL

0-30%、0-100%VOL

0.1%/0.01%VOL

≤15second

H2S

0-100PPM

0-50、200、1000PPM

0.1/1PPM

≤15second

CO

0-1000PPM

0-500/2000/5000PPM

0.1/1PPM

≤15second

NO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

Natural gas

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

NOX

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CH4

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

 CO2

0-5000PPM

0-1%、5%、10%VOL (infrared)

1PPM/0.01%VOL

≤20second

NO

0-250PPM

0-500、1000PPM

1PPM

≤20second

N2

0-100%VOL

0-100%VOL

0.1%VOL

≤15second

Alcohol

0-100%LEL

0-100%LEL

1%LEL/1%VOL

≤15second

SO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CL2

0-20PPM

0-10、50、100PPM

0.1PPM

≤20second

dichlorosilane

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

NH3

0-100PPM

0-50、500、1000PPM

0.1/1PPM

≤20second

Silicon tetrachloride

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

H2

0-1000PPM

0-40000PPM

1/10PPM

≤20second

PH3

0-20PPM

0-20、1000PPM

0.1/1PPM

≤20second

 HCL

0-20PPM

0-20、50、100PPM

0.1/1PPM

≤20second

Acrylonitrile

0-100PPM

0-100PPM

1PPM

≤20second

TVOC

0-100PPM

0-100PPM

1PPM

≤20second

CLO2

0-50PPM

0-10、100PPM

0.1PPM

≤20second

HCN

0-50PPM

0-100PPM

0.1PPM

≤20second

 ETO

0-10PPM

0-100、1000PPM

1PPM

≤20second

 O3

0-10PPM

0-20、100PPM

0.01/0.1PPM

≤20second

 CH2O

0-20PPM

0-50、100PPM

0.1/1PPM

≤20second

 F2

0-10PPM

0-1、10PPM

1/0.1PPM

≤20second

 HF

0-10PPM

0-1、10、50、100PPM

0.01/0.1PPM

≤20second

Xylene, toluene

0-20PPM

50、100PPM

0.1/1PPM

≤20second

Stench

0-100PPM

0-100PPM

1PPM

≤20second

For unlisted gas, please contact our sales department





Main function
  • Full English LCD display
  • High-performance sensor technology,long life
  • Double cavity structure design
  • Waterproof,dustproof and explosion-proof
  • Anti-corrosion shell,durable
  • Can be directly used with DCS,PLC and other systems
  • Built-in passive contact switch output
  • Standard comes with sound and light alarm in one
Technical index

Detection gas

LEL.O2,CO,H2S (Other 4 gases can be combined together)

Sampling method

Natural diffusion

Working power

DC24V / 36V (two bus)

Response time

 T90 <20s

Detection accuracy

± 5% FS

Alarm

Sound and light alarm

Working temperature

-40 ℃ ~ 70 ℃, toxic gas: -20 ℃ ~ 50 ℃ ;  Humidity: ≤95% RH

output signal

4-20mA/RS485(Relay output)

Connecting cable

RVVP 2 × 1.5mm²;   RVVP 3 × 1.5mm²;    RVVP 4 × 1.5mm²;

Transmission distance

≤1500m

Explosion-proof grade

Ex d ib IIC T6 Gb

Explosion-proof certificate number

CNEx18.0540X

Weight

2500g

Appearance size

212 × 195 × 80 (mm)
