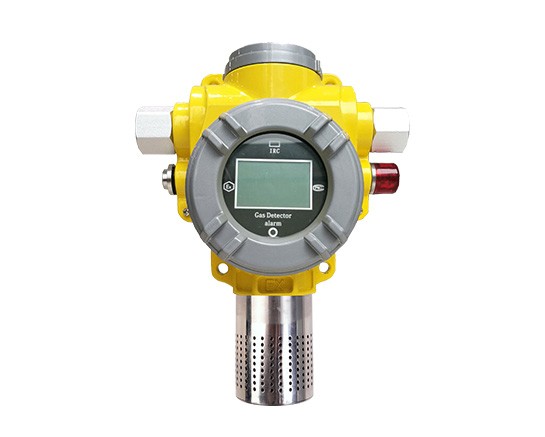

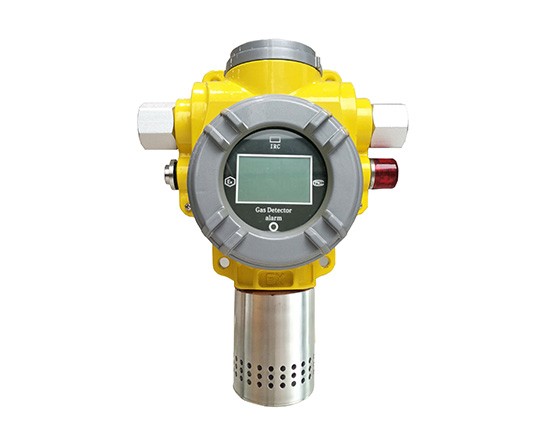

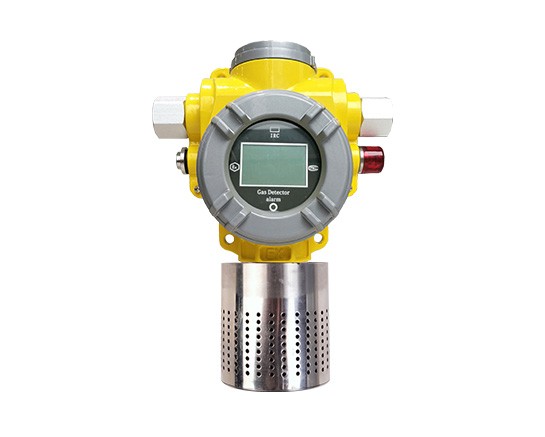

PM2.5 pm10 dust concentration detector-TCB1000
PM2.5 pm10 dust concentration detector-TCB1000
PM2.5 pm10 dust concentration detector-TCB1000
PM2.5 pm10 dust concentration detector-TCB1000
PM2.5 pm10 dust concentration detector-TCB1000
PM2.5 pm10 dust concentration detector-TCB1000

PM2.5 pm10 dust concentration detector-TCB1000

    • Sound and light integrated alarm
    • Wireless remote control technology
    • Natural diffusion detection
    • Two groups of switch signals
    • Double cavity structure
product description

The TCB1000 dust concentration measuring instrument adopts the infrared detection principle or the laser detection principle, which can transmit the dust particles in the use environment as a long-distance electrical signal and transmit the signal to the secondary instrument. The instrument can be directly uploaded to the computer or connected to the DCS system. Wait.

The TCB1000 dust concentration measuring instrument product has the functions of on-site buzzer indication sound, on-site flashing indicator light, etc., and displays the on-site dust concentration in real time.

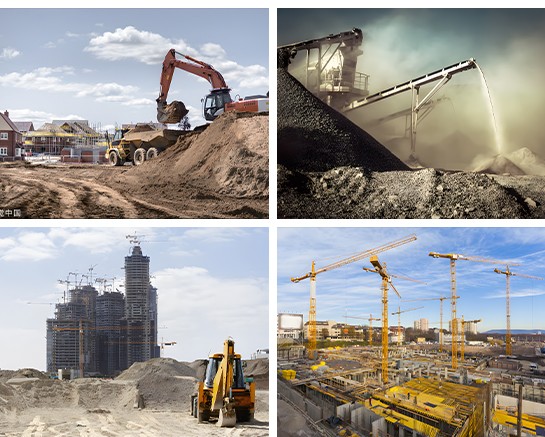

The TCB1000 dust concentration measuring instrument can be used in chemical industrial areas, smelting, paper making, flour mills, coal mining plants, pharmaceutical workshops, petroleum refining, mining power, firefighting municipalities, communications and other industrial environments that need to prevent dust explosions.



  • Sound and light integrated alarm
  • Accurate measurement: The sensor adopts imported gas sensitive elements, with high accuracy and small zero drift
  • Wireless remote control technology
  • Natural diffusion detection
  • Two groups of switch signals
  • Double cavity structure







Technical index

Detection principle

Laser detection

Detection gas

Dust

Sampling method

Naturally aspirated

Measurement range

pm2.5/pm10, 1ug / m³ ~ 1000ug / m³; 1mg / m³ ~ 1000 mg / m³; (other optional)

Resolution

1ug / m³; 1mg / m³

Detection error:

± 10% FS of full scale

Status indication

LCD indication

Debug mode

Remote control

Response time

<20s

Recovery time

<30s

Ambient temperature

-20 ℃ ~ 55 ℃

Relative humidity

≤95% RH

Working voltage:

DC24V ± 10%

Explosion-proof grade

Exd ib IIC T6 Gb

Output signal

4 ~ 20mA / RS485
