    • Original imported sensor
    • Rapid detection of gas leakage points
    • Low voltage alarm and automatic shutdown
    • Sensor failure detection alarm
    • Quick warm-up and quick response time
    • English color LCD display

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]



Product description

Portable Carbon Monoxide Gas Detectors and alarms from Gas Monitor Point for the detection of dangerous levels of Carbon Monoxide (CO).

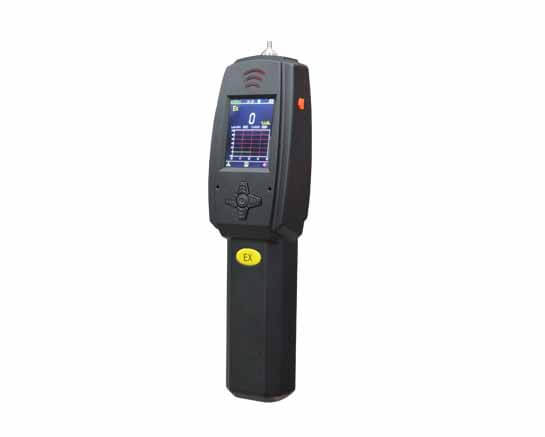

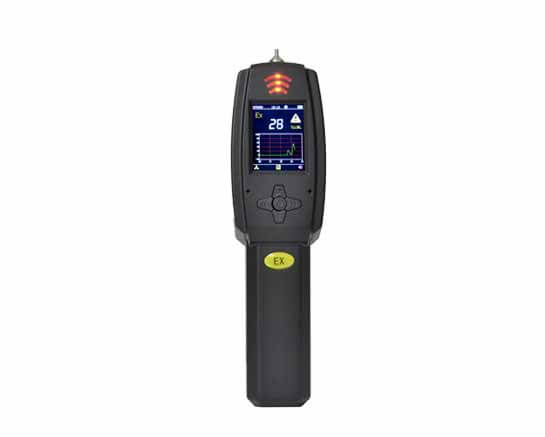

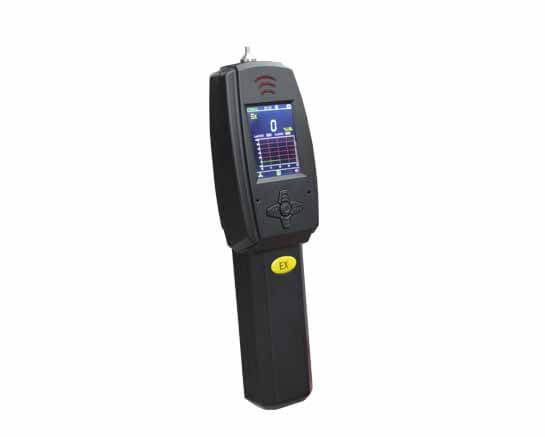

OT131 gas detector is a pump-suction ultra-high sensitivity gas detector. Electrochemistry sensor is more suitable for locating and detecting leakage gas. It is compact, easy to operate, easy to carry, and can also be attached with a flexible probe, comfortable handle. It also can show a unique concentration curve.



Gas

Measuring range

Optional range

Resolution

Response time

 EX

0-100%LEL

0-100%VOL (infrared)

1%LEL/1%VOL

≤15second

 O2

0-30%VOL

0-30%、0-100%VOL

0.1%/0.01%VOL

≤15second

H2S

0-100PPM

0-50、200、1000PPM

0.1/1PPM

≤15second

CO

0-1000PPM

0-500/2000/5000PPM

0.1/1PPM

≤15second

NO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

Natural gas

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

NOX

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CH4

0-100%LEL

0-100%VOL

1%LEL/1%VOL

≤15second

 CO2

0-5000PPM

0-1%、5%、10%VOL (infrared)

1PPM/0.01%VOL

≤20second

NO

0-250PPM

0-500、1000PPM

1PPM

≤20second

N2

0-100%VOL

0-100%VOL

0.1%VOL

≤15second

Alcohol

0-100%LEL

0-100%LEL

1%LEL/1%VOL

≤15second

SO2

0-20PPM

0-50、1000PPM

0.1/1PPM

≤20second

CL2

0-20PPM

0-10、50、100PPM

0.1PPM

≤20second

dichlorosilane

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

NH3

0-100PPM

0-50、500、1000PPM

0.1/1PPM

≤20second

Silicon tetrachloride

0-20PPM

0-20、100PPM

1/0.1PPM

≤20second

H2

0-1000PPM

0-40000PPM

1/10PPM

≤20second

PH3

0-20PPM

0-20、1000PPM

0.1/1PPM

≤20second

 HCL

0-20PPM

0-20、50、100PPM

0.1/1PPM

≤20second

Acrylonitrile

0-100PPM

0-100PPM

1PPM

≤20second

TVOC

0-100PPM

0-100PPM

1PPM

≤20second

CLO2

0-50PPM

0-10、100PPM

0.1PPM

≤20second

HCN

0-50PPM

0-100PPM

0.1PPM

≤20second

 ETO

0-10PPM

0-100、1000PPM

1PPM

≤20second

 O3

0-10PPM

0-20、100PPM

0.01/0.1PPM

≤20second

 CH2O

0-20PPM

0-50、100PPM

0.1/1PPM

≤20second

 F2

0-10PPM

0-1、10PPM

1/0.1PPM

≤20second

 HF

0-10PPM

0-1、10、50、100PPM

0.01/0.1PPM

≤20second

Xylene, toluene

0-20PPM

50、100PPM

0.1/1PPM

≤20second

Stench

0-100PPM

0-100PPM

1PPM

≤20second

For unlisted gas, please contact our sales department



Main function
  • Original imported sensor
  • Rapid detection of gas leakage points
  • Optional extended flexible probe with adjustable sensitivity
  • Low voltage alarm and automatic shutdown
  • Quick warm-up and quick response time
  • Curve display alarm value
  • Alarm record query, alarm point setting
  • Online translation, password management and other functions



Technical index

Detection gas

 Carbon Monoxide(CO)
Range 500ppm/1000ppm/2000ppm

Detection method

pump

Sensor

electrochemistry

Display

color LCD display

Detection range

different sensors have different ranges (see attached table)

 Accuracy

3% FS

Interface definition

U3 port (USB)

Power source:

3.7V 2000mAh

Power supply method

Lithium ion rechargeable battery

 Alarm

Three-level alarm of sound and light vibration

Operating environment

temperature -10 ℃ ~ 50 ℃; humidity: ≤95% RH (no condensation)



Storage environment

temperature -40 ℃ ~ 70 ℃; humidity: ≤95% RH (no condensation)

Response time

 <10s

Sensitivity

1PPM

Explosion-proof grade

intrinsically safe

 Security level

Ex ib IIB T3 Gb

Alarm point

 adjustable

Standby time

 combustible gas> 8h toxic gas about 300 hours

Weight

500g

Size

(254 × 68 × 48) mm (excluding probe rod)

 Leak detection instrument

natural diffusion type, with extended flexible probe, PPM and% LEL display simultaneously

Detection instrument

built-in pump suction detection method, double buzzer prompt and its growing light indication
