    • High-precision PID photoion detection principle
    • Built-in suction pump working mode, fast response time
    • High precision, long life
    • Detection gas range light
    • Strong anti-interference ability
    • Two-level switch output
Product description

The GDB2 VOC  online filter monitoring system can be used to detect locations containing VOCS gas concentration. Once the gas concentration exceeds the standard, it will give an alarm prompt. It can accurately detect the concentration of VOCS gas and display real-time concentration value and standard signal output on site. The advantages of stable signal, high sensitivity and high precision, the explosion-proof wiring method is suitable for all kinds of dangerous places.

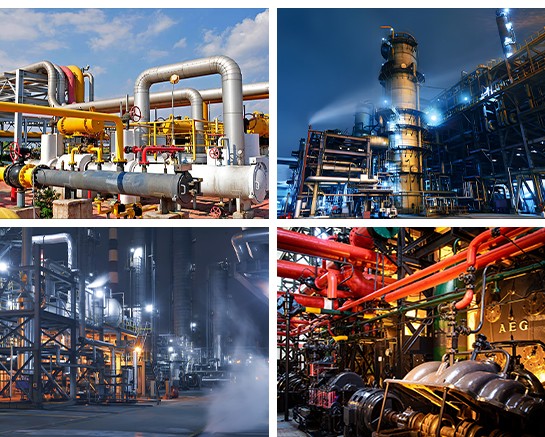

GDB2 type VOC  online filter monitoring system is suitable for industries and departments such as environmental protection and safety, petrochemical industry, steel smelting, etc. Real-time online monitoring in a variety of complex environments such as synthetic leather, paints, clothing processing, furniture manufacturing, adhesives and other industries.

GDB2 online VOC  filter monitoring system adopts internationally known high-precision PID photoion detection principle, built-in suction pump working mode, fast response time; high precision, long life; wide detection gas range; strong anti-interference ability; 20mA, RS485 / M-BUS and other standard signal outputs can be easily integrated into the monitoring system. Two-level switch output; on-site LCD display, external adjustment and setting of infrared remote control; can transmit vocs gas in the environment as an electrical signal at a long distance, and transmit the signal to the secondary instrument, this sensor can be directly uploaded to the computer Or connect to the DCS system. It can also be connected with the environmental monitoring platform of the local environmental protection bureau to achieve continuous remote monitoring of total volatile organic compound (VOCS) concentration in the environment.

GDB2  online VOC filter monitoring system products have the functions of on-site buzzer indication sound, on-site flashing indicator light, etc., and real-time display and monitoring of on-site concentration.



Pressure adjustment:

Part of the on-site environmental pressure is a very pressure environment (101 KPa), and the pressure of the environmental sampling port needs to be adjusted before sampling. (This processing unit is an external unit, adjusted according to the on-site environment, suitable for positive pressure or negative pressure in the sampling environment)



Dust removal:



Dust removal filter adopts vacuum pump filter, which is widely used in industrial vacuum system to effectively prevent solid particles or dust from being sucked into the vacuum pump or system. Reduce pump wear, improve pump reliability, extend pump life, and effectively protect the components of the vacuum system.

The filter adopts all-steel structure, sturdy and durable. It is suitable for industrial use. The answer and request adopts a seamless stretched metal shell, equipped with a copper welded port, which has high air tightness and large scale capacity, easy to clean, and simple and quick to replace the filter element. The inlet and outlet are connected by thread, and special nozzles can be fitted according to customer requirements. The filter is sealed with O-rings, and the maximum vacuum value is less than 1Pa. The standard configuration paper filter element, the filtration accuracy is 99% (10 micron particles), and the passing gas temperature is -15° to 90°.



Cool down:



The cooling device of this system is a physical cooling condenser and does not have a cooling function. The condenser adopts a copper tube design with strong thermal conductivity and hydrophilic fins, which effectively enhance the heat dissipation effect.



Water filtration:

The separator adopts an oil-water separator, which is mainly used to separate water and oil in the gas, reduce the influence of gas humidity on the collection and analysis, and regularly remove the water through the system control solenoid valve.



Gas analysis unit

The filtered clean gas is transported to the sensor through the suction pump gas. The detector monitors the gas concentration in real time, and displays the real-time concentration value on the dot matrix LCD screen. The signal is transmitted to the external touch LCD screen. The touch LCD screen also displays the temperature and humidity of the air where the device is located in real time, so that personnel can observe the environment in real time.



  • Built-in suction pump working mode, fast response time
  • Strong anti-interference ability
  • Standard signal output such as 4-20mA, RS485/M-BUS, etc., can be easily integrated into the monitoring system
  • Two-level switch output
  • On-site LCD display, infrared remote control external adjustment and setting
  • International environmentally friendly products qualified products



Technical index

Detection gas

VOC

Detection principle

PID photoion

Display mode

HD 1.7 inch, 320X240 resolution, optional: high brightness LED display

Detection range

0-200, 2000、10000PPM

Resolution

0.01,0.1,1PPM

Detection method

pump suction measurement, optional pipeline, flow, diffusion

Installation method

Fixed installation, optional pipeline installation, flange installation

Detection error

≤ ± 3% (F.S), high precision can be customized

Response time

T90≤30S

Output signal

3-wire 4 ~ 20mA, relay (passive or active output), bus system RS485-RTU

Alarm mode

Sound and light alarm, alarm point can be set.

Working environment

Atmospheric pressure ± 30%, -40 ℃ ~ + 70 ℃, higher temperature environment requires customized or optional pretreatment system.

Relative humidity

≤95% RH (non-condensing occasions), use of higher humidity environment requires customized or optional pretreatment system.

Working voltage

AC220V ± 10% 50HZ

Explosion-proof grade

ExdⅡCT6

Connection cable:

Three-wire system 4 ~ 20mA select three-core shielded cable, RS485 select four-core shielded layer, the shield layer is connected to the ground

Electrical interface

1 / 2NPT, M20X1.5

Size 800mm *560mm * 300mm

Protection level

IP65
