ZM800 Exhale Alcohol Content Detector
ZM800 Exhale Alcohol Content Detector
ZM800 Exhale Alcohol Content Detector
ZM800 Exhale Alcohol Content Detector
ZM800 Exhale Alcohol Content Detector
ZM800 Exhale Alcohol Content Detector

ZM800 Exhale Alcohol Content Detector

    • 32-bit microprocessor, fast speed and strong processing power.
    • Using high-resolution true color LCD screen, the display interface is clearer.
    • A large number of test records are automatically stored, and 20,000 test records can be stored.
    • All-in-one thermal printer, more convenient to use.
    • Two-level sound and light alarm information, the screen displays the alarm type (voice alarm (optional)).
    • With undervoltage alarm and low power consumption waiting machine.

     Mobile/whatsapp:  +86-13333858191     Email:  [email protected]



Product description

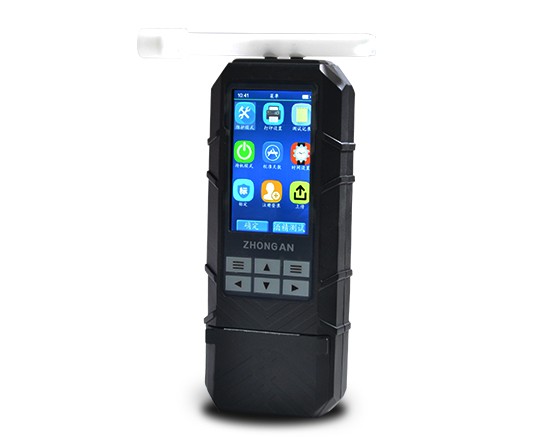

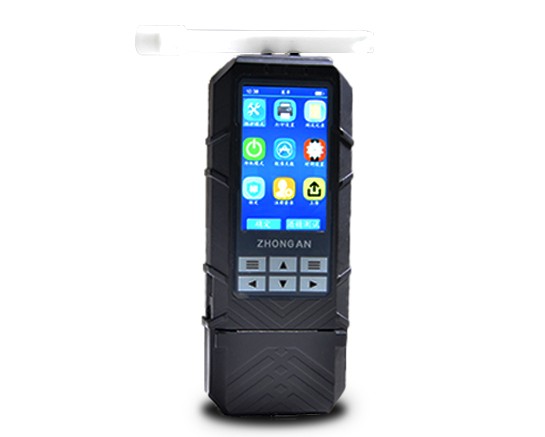

ZM800 is our company's newly developed exhaled alcohol content detector. The core part of the instrument adopts high-tech electrochemical alcohol sensor, which has the advantages of high precision, high sensitivity, high stability, strong anti-interference ability and convenient calibration.

OT400 has a simple keyboard, menu operation and a very good human-computer interaction interface, making the operation more simple and convenient;The instrument adopts full-color LCD display screen, the operation interface is beautiful and clear, suitable for outdoor use; Built-in thermal printer, easy to use.

The disposable backflow preventer ensures the health and safety of the test subjects.

Main function
Henan Zhong An Electronic Detection Technology CO.,LTD.
  • 32 - bit microprocessor, fast speed and strong processing power.
  • The electrochemical sensor with high precision and sensitivity ensures the stability of performance and the accuracy of measurement.
  • Adopt high resolution true color LCD display screen, display interface is clearer.
  • Massive automatic storage of test records, which can store 20,000 test records.
  • Integrated thermal printer, more convenient to use.
  • The test data is uploaded to the computer via USB interface to achieve centralized statistics management.
  • Two levels of alarm for drinking and drunkenness. The function of blowing interrupts the alarm and refuses to test the alarm.
  • One-time backflow prevention, blocking, blowout preventer designProvide real-time time display function.

  • Two-level acousto-optic alarm information, screen display alarm type (voice alarm (optional)).
  • It has undervoltage alarm and low power consumption waiting machine.



Technical index

Model

ZM800

Sensor type

Electrochemical alcohol sensor

Measurement range

0~440mg/100ml(0~2.000mg/L)

Warm up time

<20s

Drink-driving threshold

0.090 mg/L(20mg/100ml)

Drunk driving threshold

0.363 mg/L(80mg/100ml)

Storage temperature

-30℃~70℃

Working Temperature

0℃~50℃

Continuous working time

 the normal detection status is more than 10 hours.

Size

L×W×H(mm):171*75*32

Weight

About 300g

Calibration period

6 months
