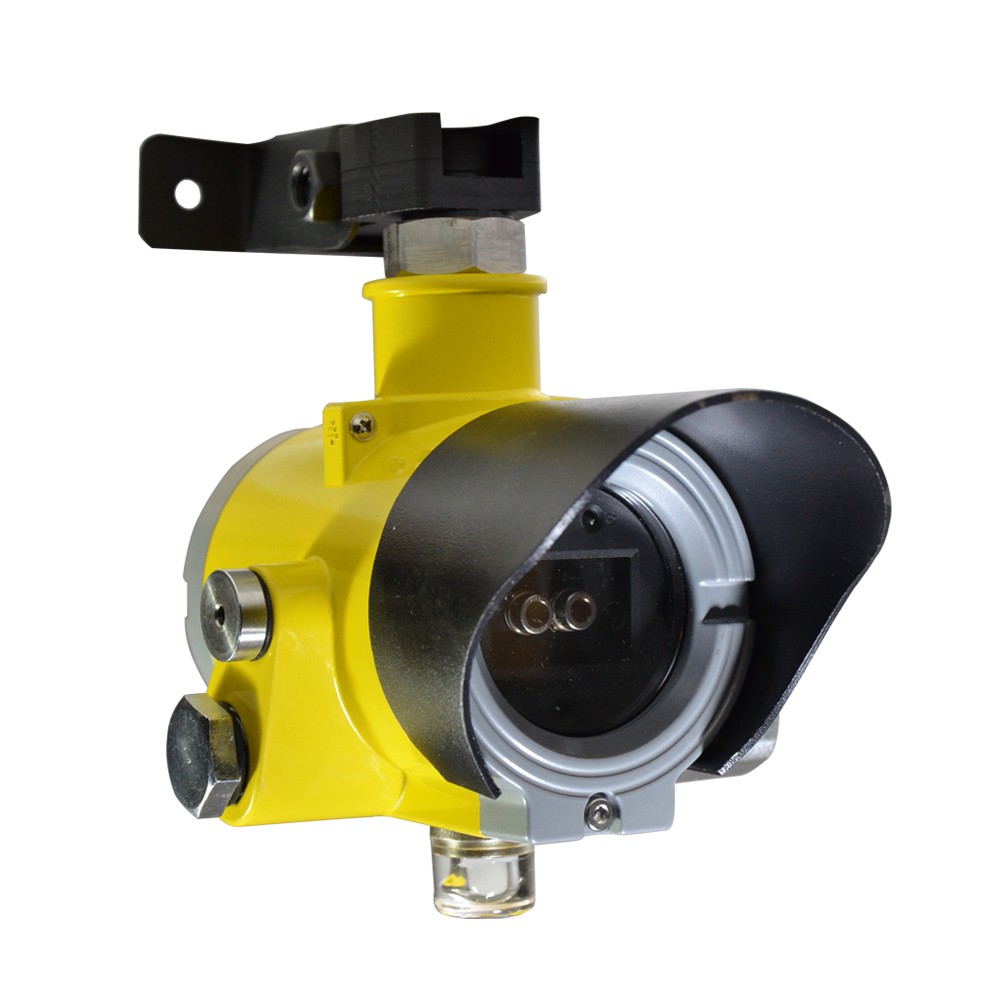

S600 Point-type infrared flame detectors are suitable for liquid and gas fires, open flames that produce smoke, and places prone to explosive combustion.
|
Response spectrum range |
2.2-4.4μm |
|
Response time |
6s |
|
Viewing angle range |
≤120° |
|
Detection distance: |
Class I |
|
Ambient temperature: |
-10 ~ 55 ℃ |
|
Environmental humidity |
≤95% RH |
|
Pressure range |
86 ~ 106Kpa |
|
Working voltage |
DC24V |
|
Working current |
Current≤25mA, alarm current≤35mA |
|
Protection grade |
IP66 |
|
Signal output |
Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector) |
|
Installation method: |
Wall or ceiling |
|
Cable outlet thread |
20mmX1.5mm free conversion G1 / 2 optional |
|
Dimensions |
(190X160X110) mm |
|
Shell material |
Die-cast aluminum |
|
Weight |
1Kg |
|
Advantages |
Dustproof, explosion-proof and corrosion-proof
|
If you need our products please write down any questions, we will reply as soon as possible.
